Product Description:

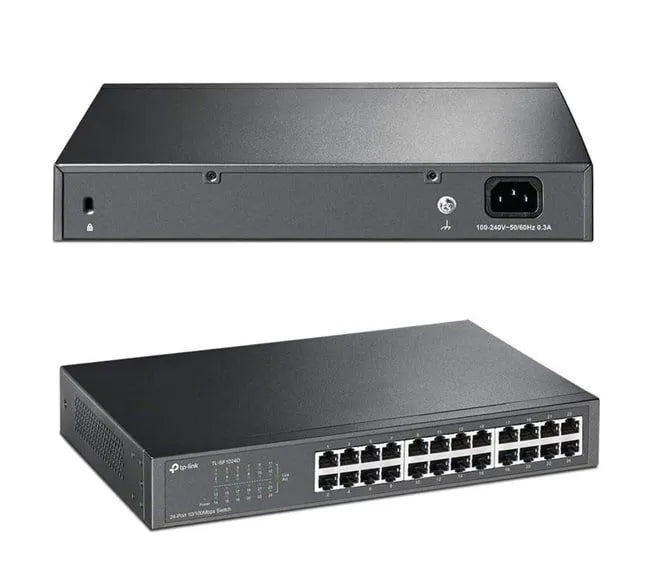

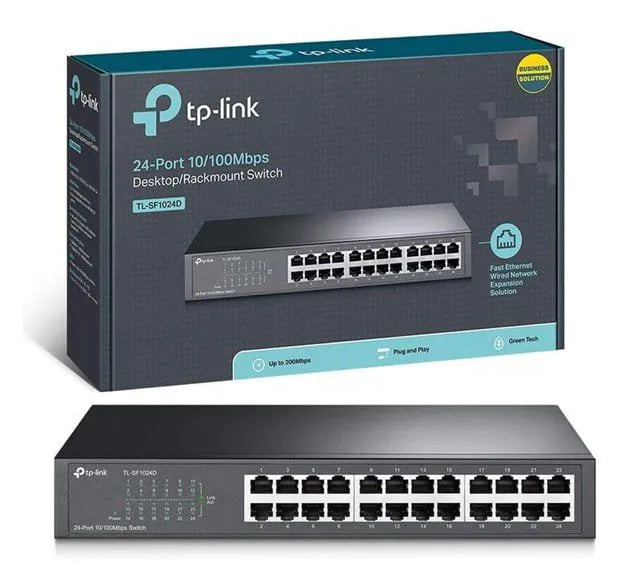

TP-Link TL-SF1024D is a high-performance networking switch designed to provide seamless wired connectivity for small businesses, workgroups, and home networks. With 24 Auto-Negotiation 10/100Mbps ports, it offers an easy, cost-effective solution to expand your network. This TP-Link switch delivers reliable performance with a non-blocking architecture, energy-efficient technology, and a durable fanless design for silent operation.

Product Features:

24 Auto-Negotiation RJ45 Ports
Equipped with 24 10/100Mbps ports
that support Auto MDI/MDIX, the switch eliminates the need for crossover
cables or uplink ports.

Non-Blocking Switching Architecture
The TL-SF1024D ensures maximum
throughput with a switching capacity of 4.8 Gbps, enabling smooth data
transfers and reliable performance across all ports.

Rackmount or Desktop Design
Built in a sturdy steel case, the
switch supports both rackmount and desktop installation, offering
flexibility in deployment for various network setups.

Fanless Operation
Its quiet, fanless design makes it ideal for noise-sensitive environments like offices, classrooms, and meeting rooms.

Plug and Play
With no configuration required, this networking switch supports instant setup, making it user-friendly for non-technical users.

Energy-Efficient Technology
Integrated Green Ethernet technology
reduces power consumption by automatically adjusting power usage based
on link status and cable length.

Product Specifications:

Ports: 24× 10/100Mbps Auto-Negotiation RJ45 ports, Auto MDI/MDIX
Standards: IEEE 802.3i, 802.3u, 802.3x
Switching Capacity: 4.8 Gbps
MAC Address Table: 8K entries
Forwarding Mode: Store and forward
Flow Control: IEEE 802.3x full duplex; backpressure for half-duplex
Housing: Rack-mountable steel case
Fanless: Yes, for silent operation

Data Rates:

Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)

Network Media:

10Base-T: UTP Cat3/4/5, STP up to 100m
100Base-TX: UTP Cat5/5e, STP up to 100m
Power Supply: Internal 100-240VAC, 50/60Hz
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
Certifications: FCC, CE, RoHS

Package Contents:

TL-SF1024D Switch
Power Cord
Rackmount Kit
User Guide
